New Shape

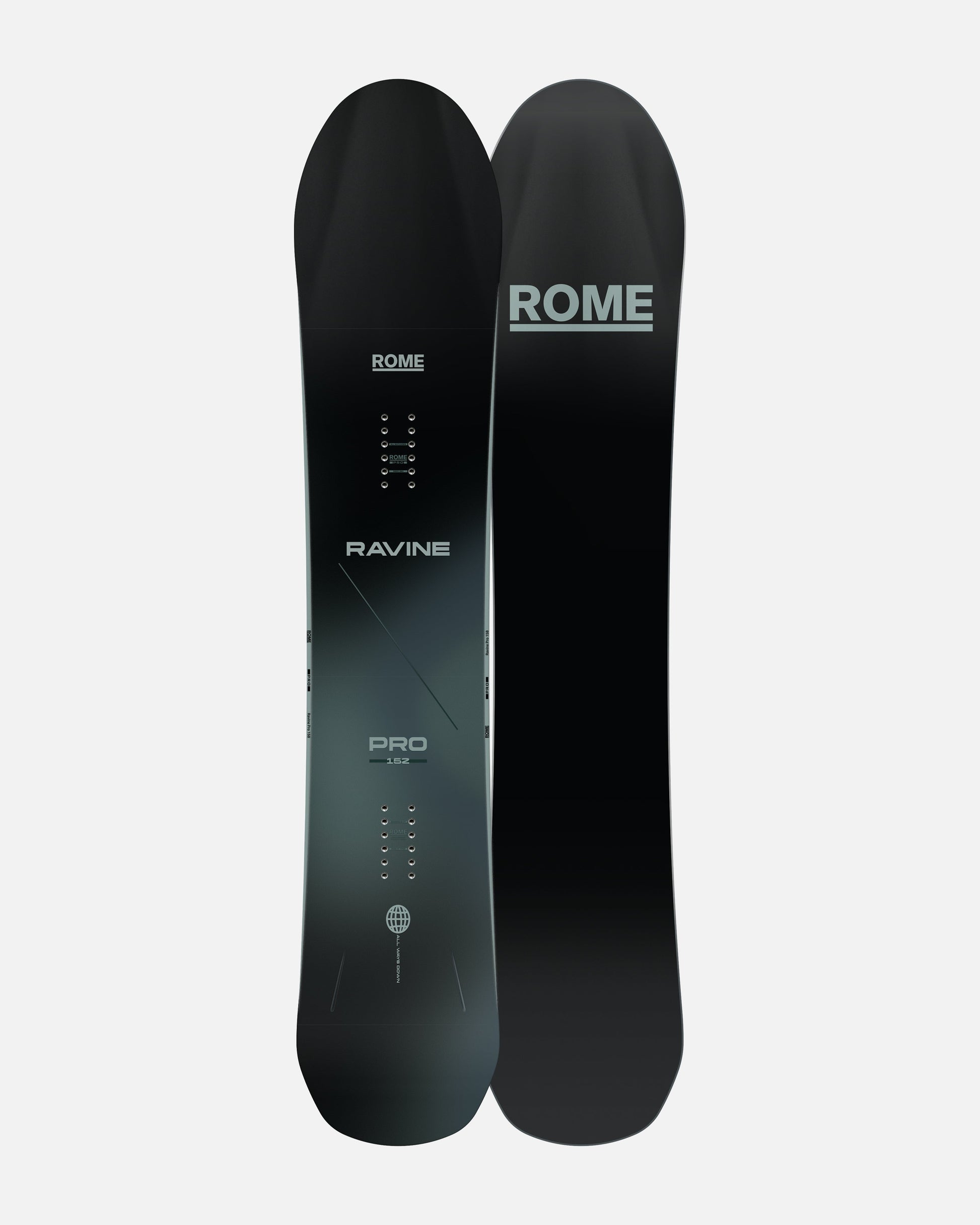

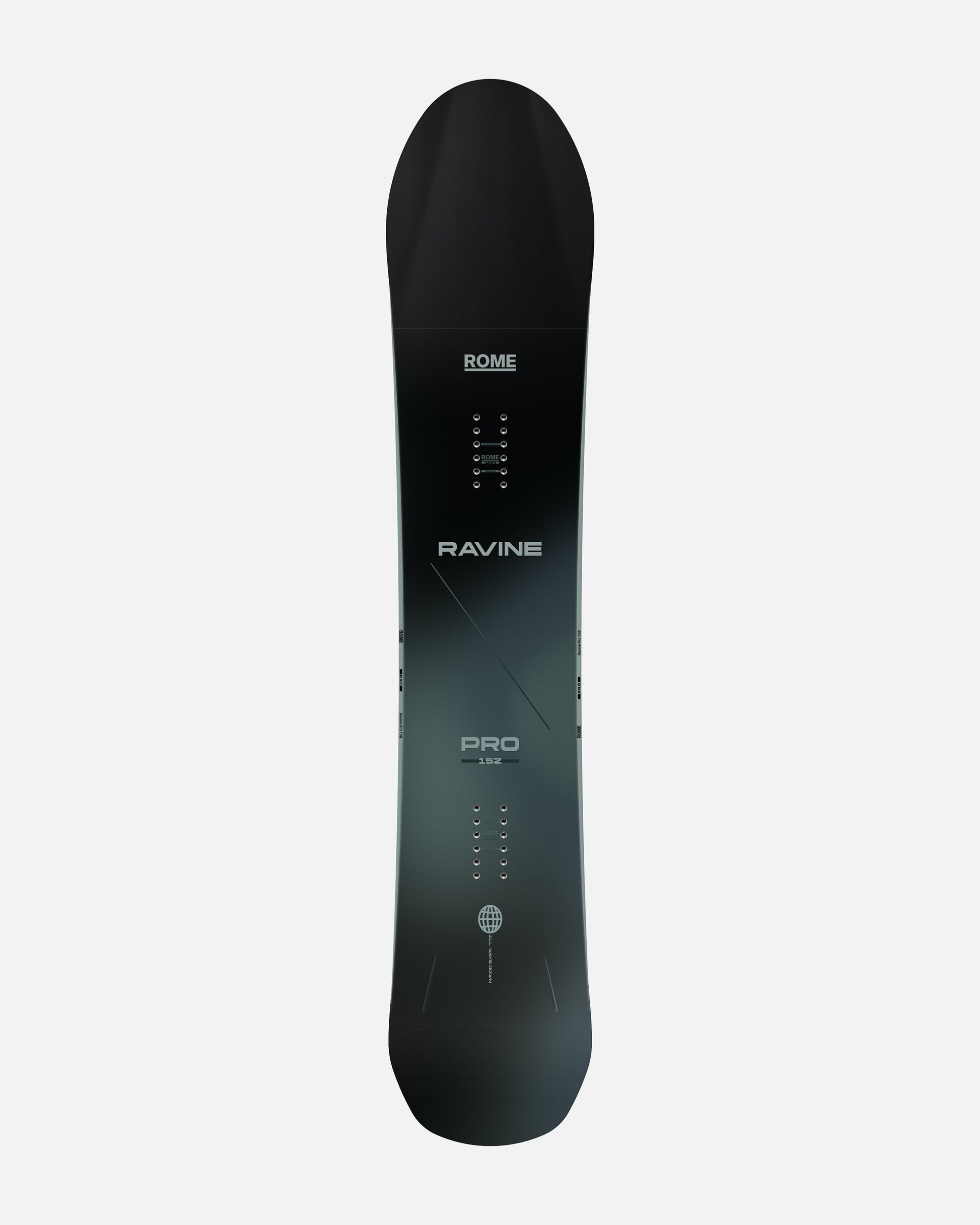

Ravine Pro Snowboard
Built for riders who want an aggressive all-mountain board for high-octane riding. With a powerful flex profile, taper and 3D shaping in the nose, the Ravine Pro is a team favorite for serious terrain and deep days.
Technology
Free-the-Ride Camber

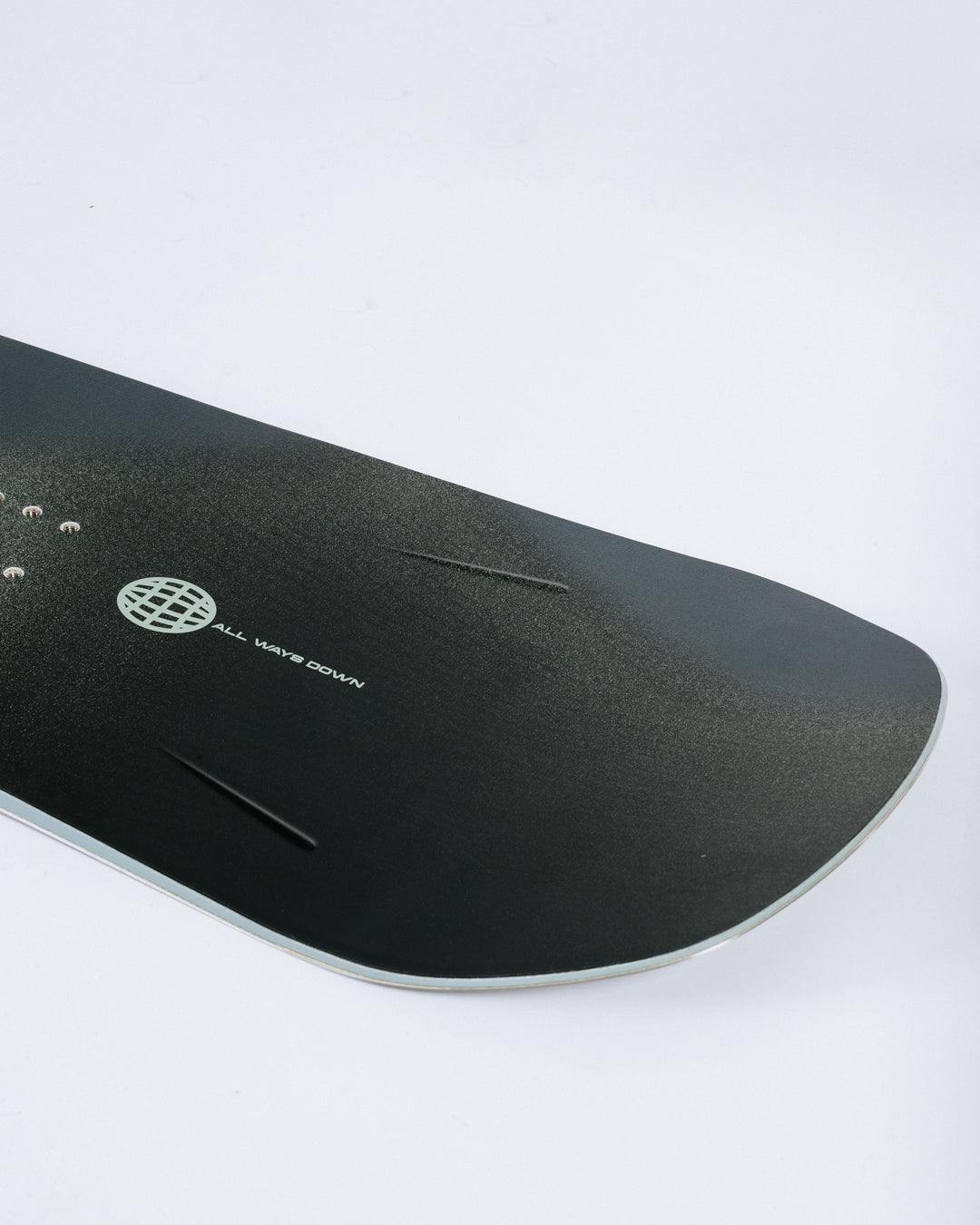

Designed for all-mountain prowess and float in the deep. Rockered in the nose, flat under the front foot, with a positive cambered tail.
Shape, Hotrod and Construction
Directional Diamond 3D

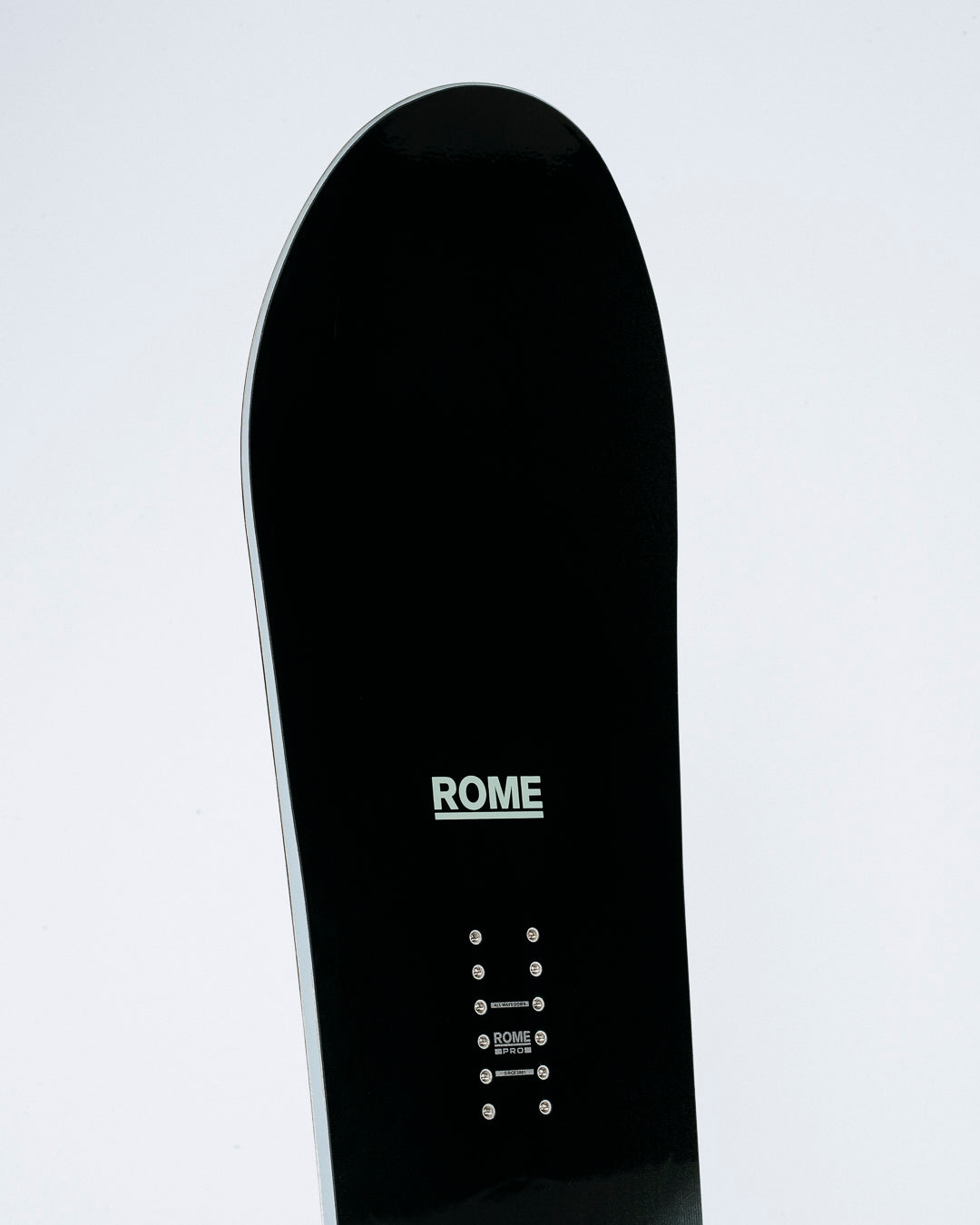

Found only in the board’s nose, Directional Diamond 3D is used on our directional boards to help float in deep snow and crank long, smooth turns. Built for premium pow performance, while still being reliable on groomers.
Carbon Omega HotRod
Other-worldly response with our most powerful snap.
Flax Impact Plates
Flax Impact Plates are woven flax mats that are housed around the board’s insert packs, sandwiched between the core and top sheet. This horizontal layup works to withstand deep landings, distribute impact in variable conditions and increase the board’s overall lifespan without dramatically changing the board’s flex.

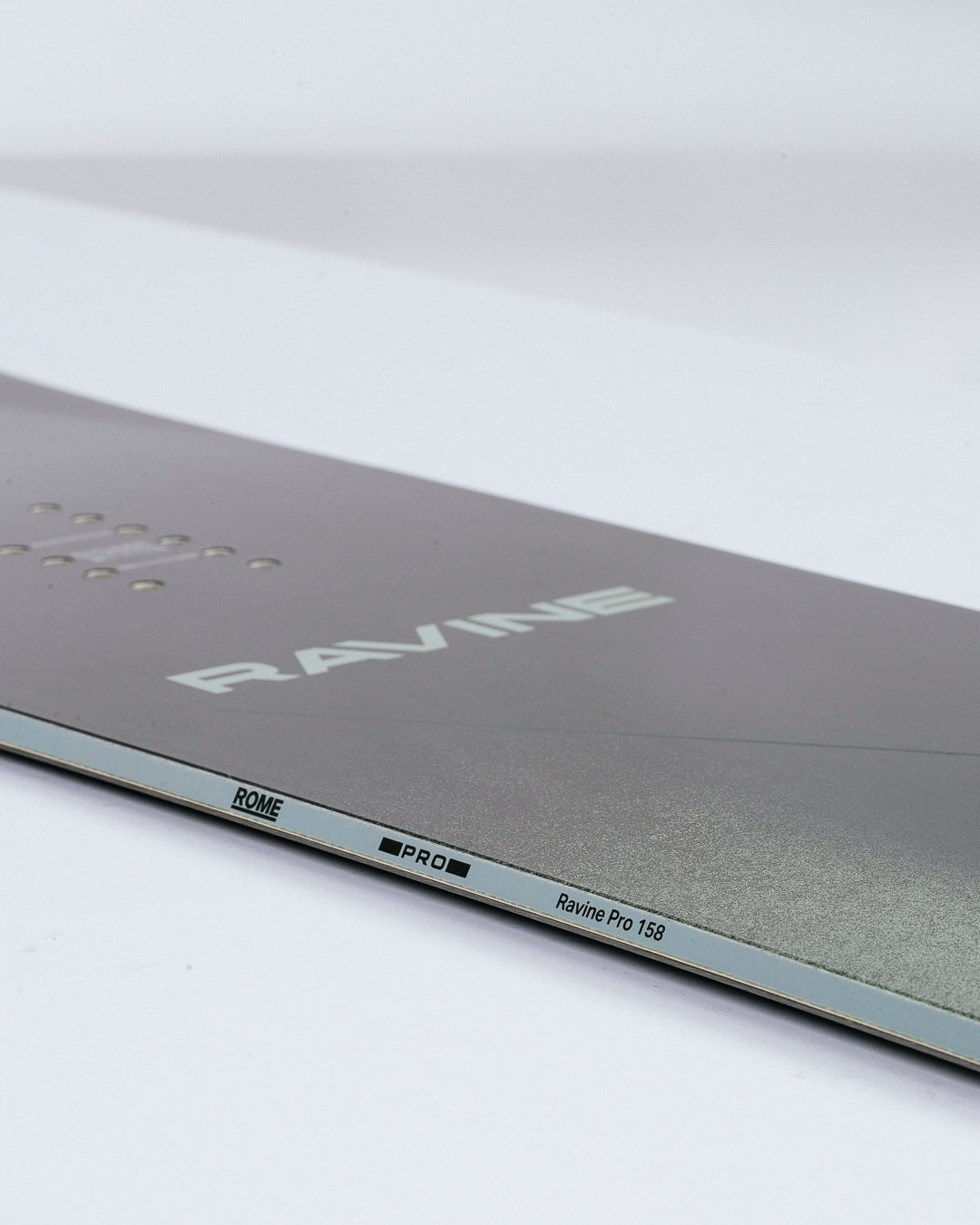

Directional Flax Walls
Directional Flax Walls are used in the noses of all-mountain boards providing additional stability and power to handle steep terrain and the impact associated with all-mountain riding.

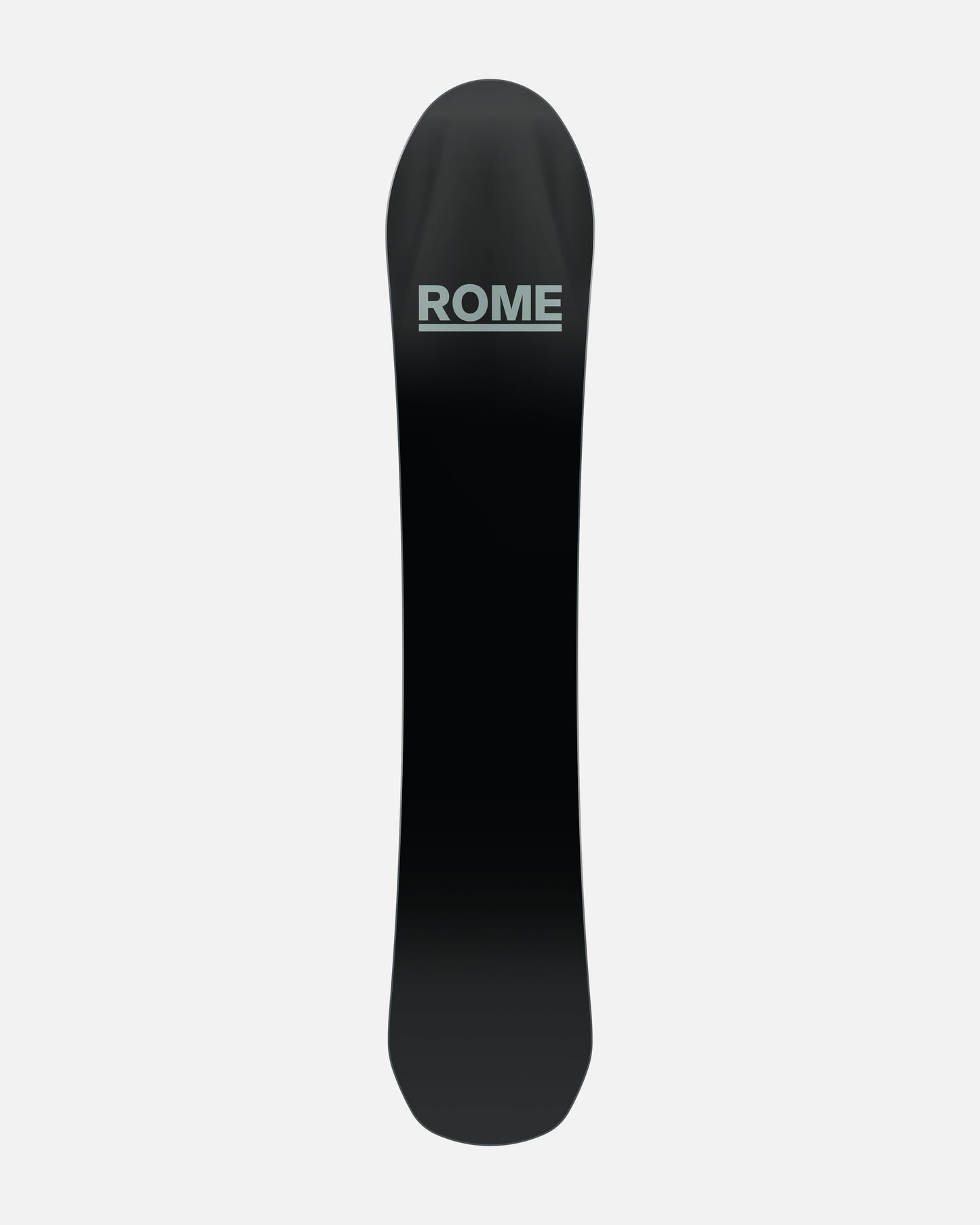

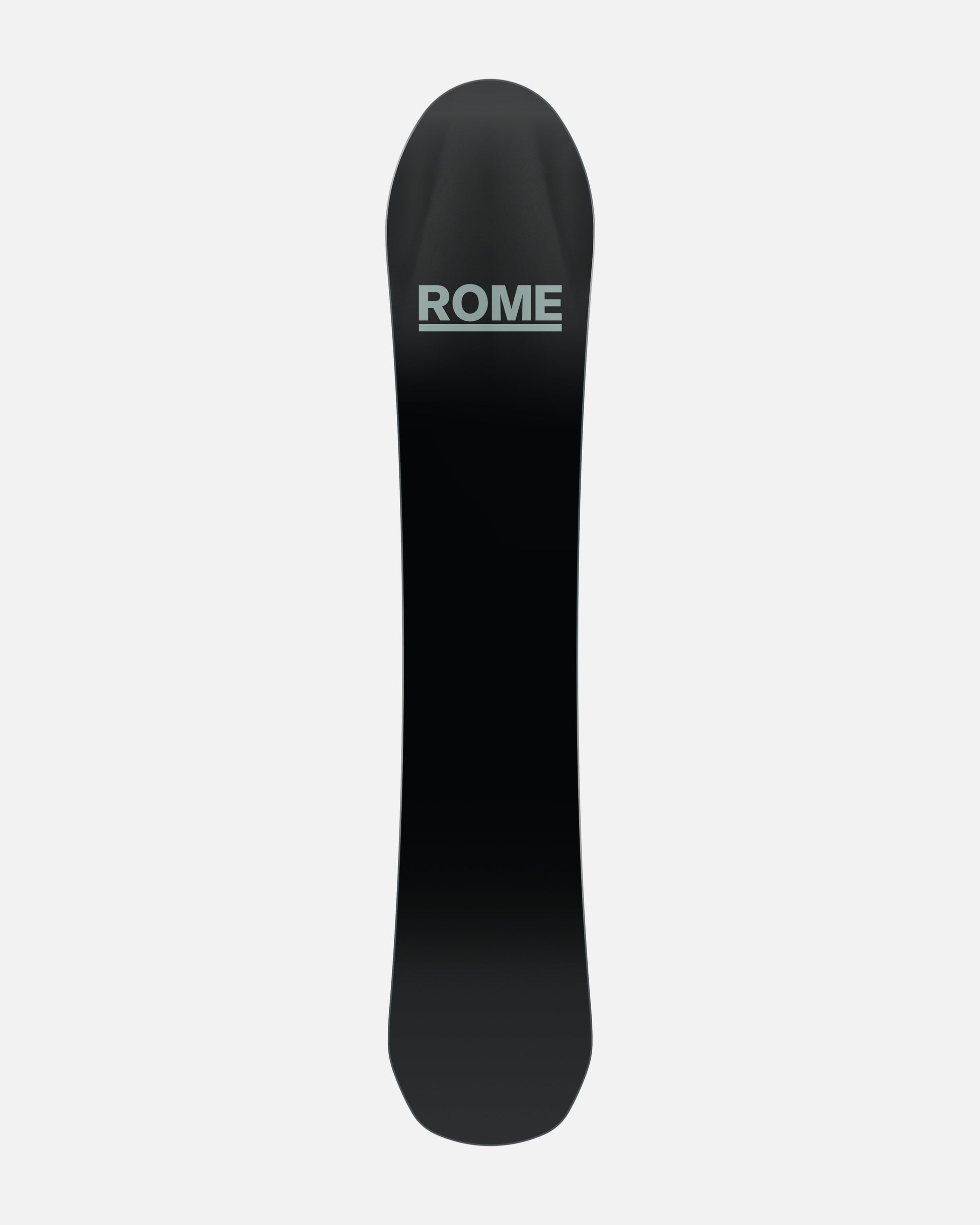

SinterSpeed Base
Our premium sintered base built for high performance and high-speed riding.
Tri-Radial Sidecut
Seamless integration of three radii that creates a fully continuous curvature without disruption. This allows for a progressive and predictable turn shape that can be optimally tuned to accommodate twin and tapered boards.
Construction
SinterSpeed Base
Biax Lower Glass
Carbon Omega HotRod
Carbon Omega HotRod
SuperPop Core
Triax Upper Glass

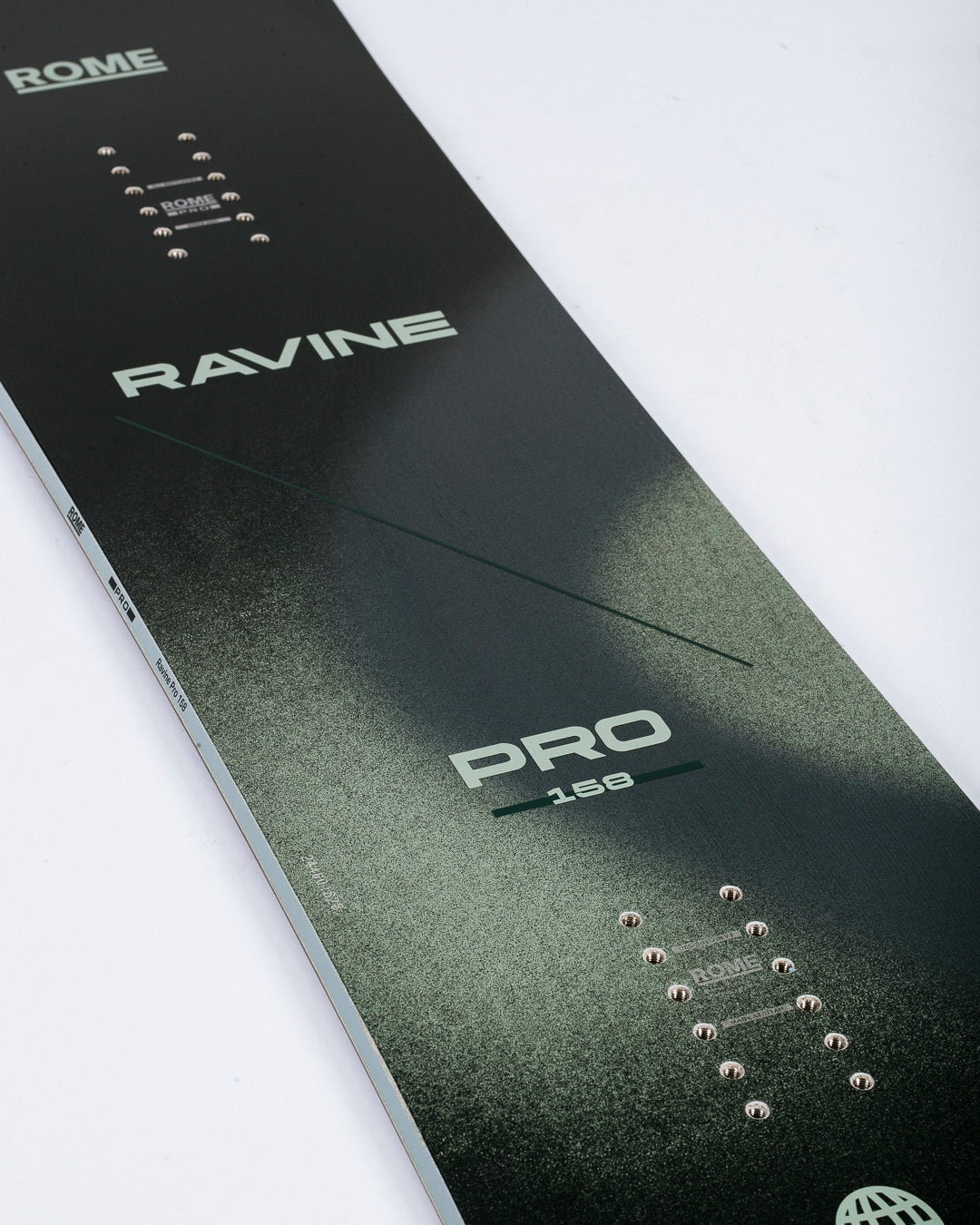

Topsheet
Ravine Pro Snowboard Size Chart
Length (cm) |
152 | 155 | 158 | 159W | 161 | 162W | 165W |
|---|---|---|---|---|---|---|---|
Contact Length (cm) |
109.96 | 112.13 | 114.3 | 115.024 | 116.47 | 117.194 | 119.364 |
Effective Edge (cm) |
115.96 | 118.13 | 120.3 | 121.024 | 122.47 | 123.194 | 125.364 |
Waist Width (cm) |
25.47 | 25.635 | 25.8 | 26.855 | 25.965 | 27.02 | 27.185 |
Sidecut Radius (m) |
5.7 / 7.0 / 5.2 | 5.7 / 7.5 / 5.3 | 5.6 / 7.9 / 5.2 | 5.5 / 8.0 / 5.2 | 5.5 / 8.4 / 5.2 | 5.5 / 8.5 / 5.2 | 5.5 / 9.0 / 5.2 |
Setback (cm) |
1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Inserts |
24 | 24 | 24 | 24 | 24 | 24 | 24 |
Min/Max Stance (in) |
19.4-24.1 |
19.4-24.1 |
20.4-25.1 |
20.4-25.1 |
20.4-25.1 |
20.4-25.1 |
20.4-25.1 |
Min/Max Stance (cm) |
49.34-61.34 |
49.34-61.34 |
51.88-63.88 |
51.88-63.88 |
51.88-63.88 |
51.88-63.88 |
51.88-63.88 |
Recom.Recommended Weight (Lbs) |
114-154 |
126-166 |
138-178 |
138-178 |
154-194 |
154-194 |
170-210 |
Recom.Recommended Weight (Kg) |
52-70 |
57.5-75.5 |
62.5-81 |
62.5-81 |
70-88 |
70-88 |
77.5-95.5 |
Boot Size (us/uk) |
7-10 / 6-9 |
7-10 / 6-9 |
8-12 / 7-11 |
9-12 / 8-11 |
8-12 / 7-11 |
9-12 / 8-11 |
10-14 / 9-13 |
Boot Size (eu/cm) |
39-44 / 25.0-28.0 |
39-44 / 25.0-28.0 |
42-46 / 26.5-29.5 |
42-47 / 27.0-30.0 |
42-46 / 26.5-29.5 |
42-47 / 27.0-30.0 |
44-48 / 28.0-31.0 |
